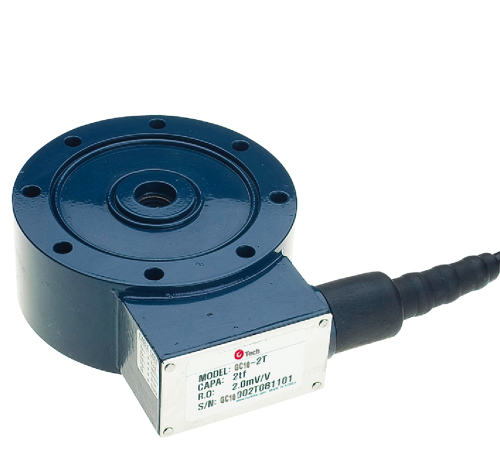

Pan cake load cell GC10
GC10 Pan cake load cell / 200, 300, 500 kgf, 1, 2, 3, 5, 10, 20 tf
FEATURES
Fully environmental protetion, IP67
Material
Paint finished steel
Cable
Braided shield 4 - wire round cable
with PVC - jacket

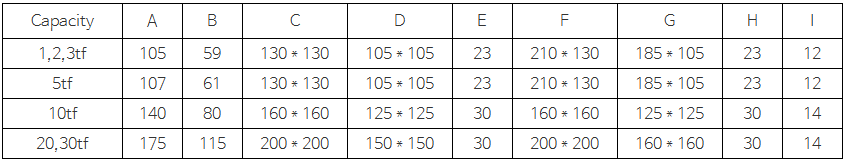

제품 규격

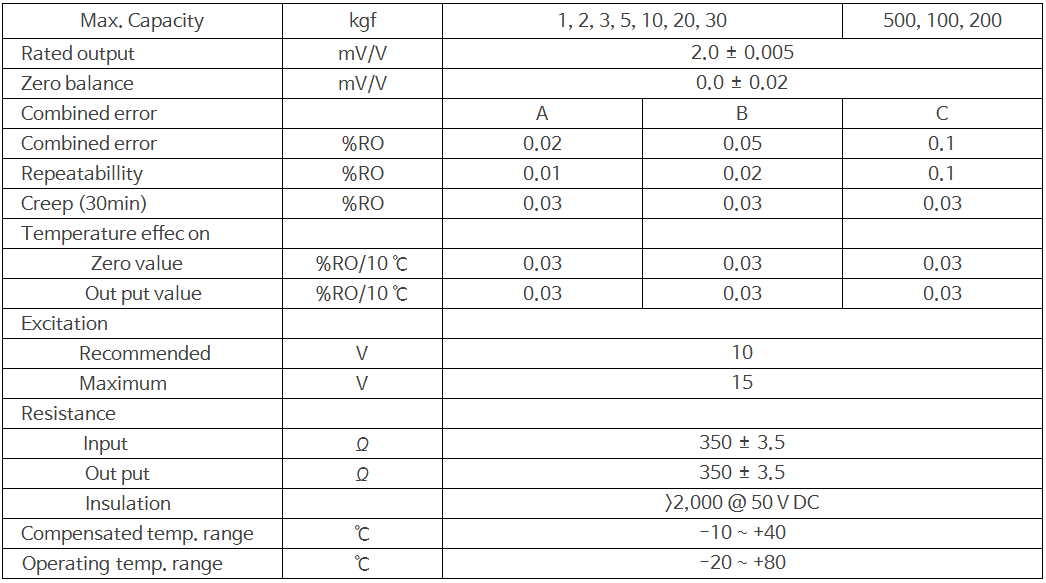

제품 사양

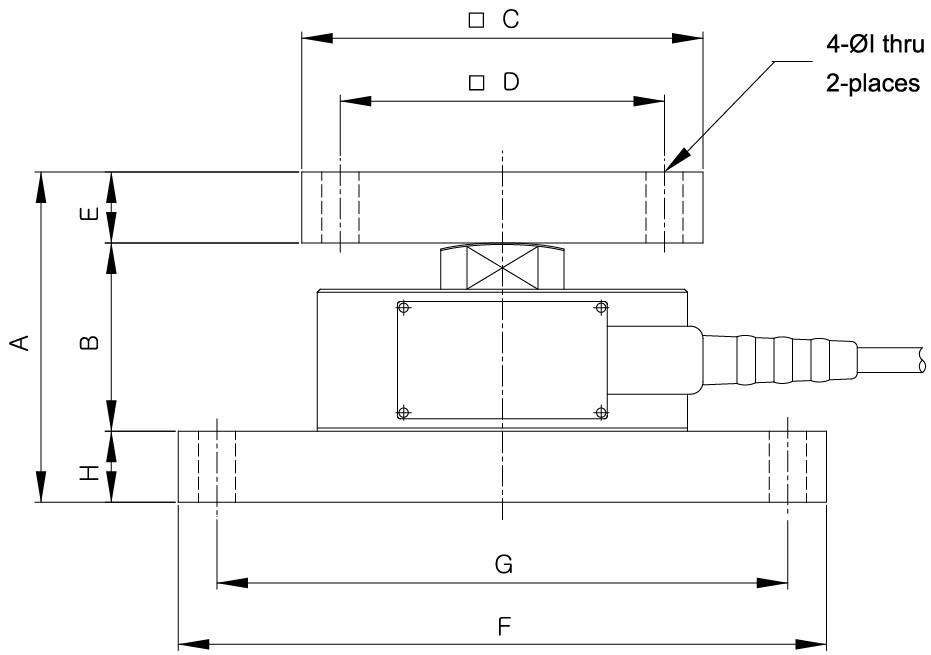

GC10 _ COMPRESSION ACCE(Load Button/Ball TYPE)
Pan cake load cell / 1, 2, 3, 5, 10, 20, 30, 50, 100 tf
FEATURES
Accessory features
High durability
Appropriate for Tank and Hopper application
Designed with safety Coefficient considerations
Manual
Load cell connection with the Mounting Plate
Fix the Mountiung plate on the surface
Check the level of the Mounting Plate
Place the Loading Plate over the Load Cell
Check the value with a display systems
Option
Protection to breakaway

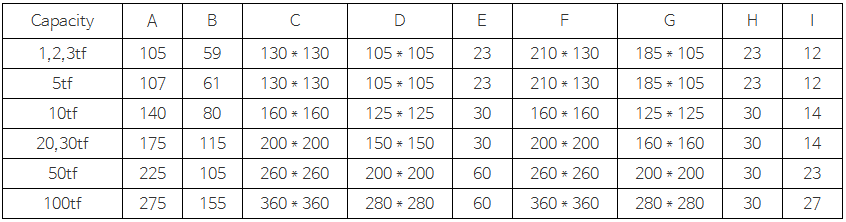

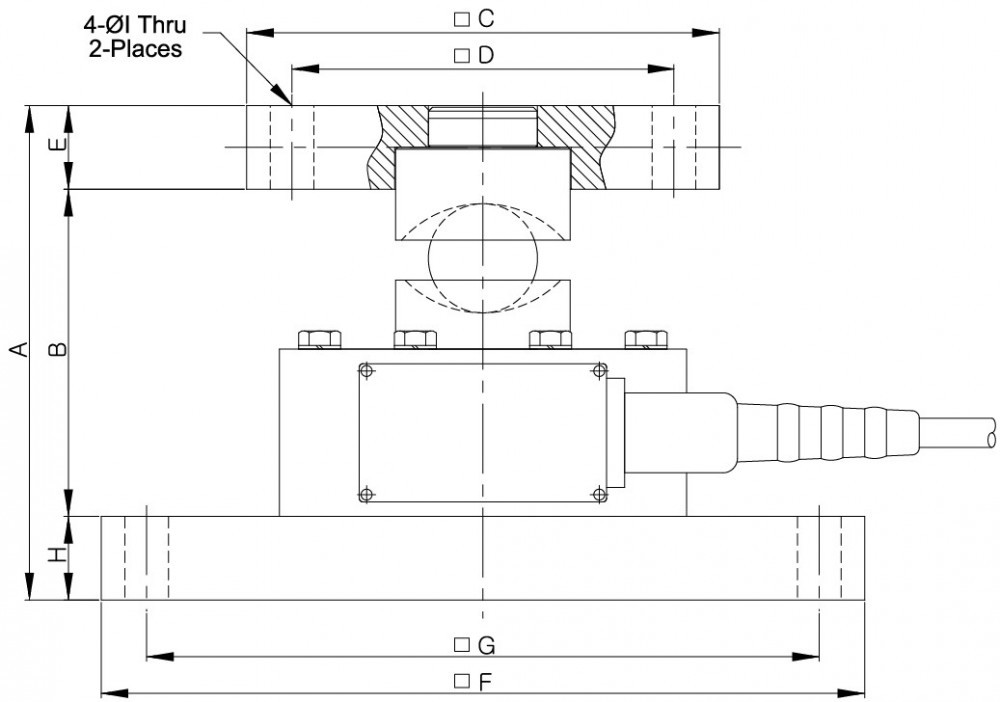

GC10 _ COMPRESSION ACCE(Load Button/Ball TYPE)
Pan cake load cell / 1, 2, 3, 5, 10, 20, 30 tf
FEATURES
Accessory features
High durability
Appropriate for Tank and Hopper application
Designed with safety Coefficient considerations
Manual
Load cell connection with the Mounting Plate
Fix the Mountiung plate on the surface
Check the level of the Mounting Plate
Place the Loading Plate over the Load Cell
Check the value with a display systems
